Structural characteristics, performance and scope of application The Single row cross roller slewing bearing is composed of two seat rings. It has compact structure, light weight, high manufacturing a […]

Message Online Chat

Product Description

Structural characteristics, performance and scope of application

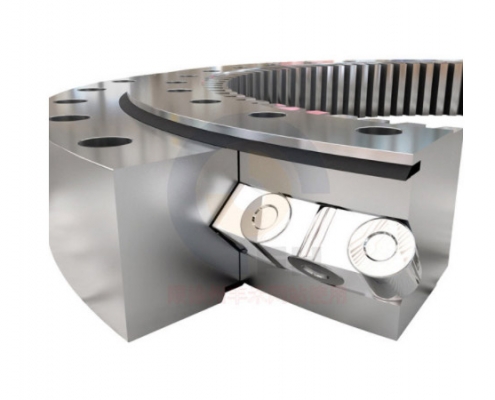

The Single row cross roller slewing bearing is composed of two seat rings. It has compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged. It can bear axial force, overturning moment and large radial force at the same time. It is widely used in lifting transportation, construction machinery and military products.

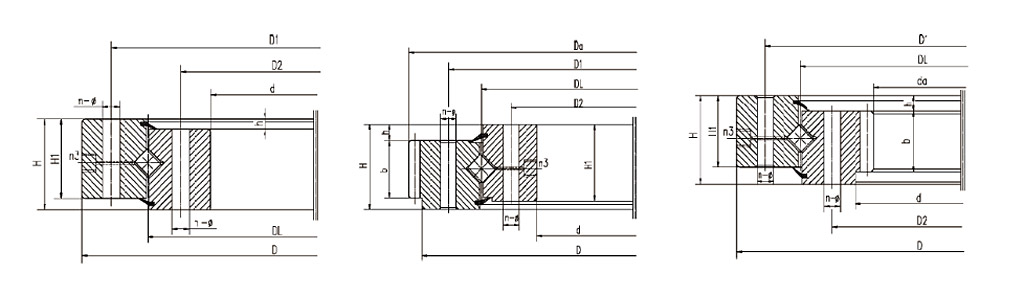

HJ-series（biaoge02

Bearing type Boundary dimensions Mounting hole diameter Structure dimensions Gear parameters  Mass    KG
Non-gear type External gear type Internal gear type D d H D1 D2 n φ D3 d1 H1 h n3 m Ext gear Int gear b x
mm mm mm mm Da Z da Z mm
110.25.500** 111.25.500.** 113.25.500.** 602 398 75 566 434 20 18 499 501 65 10 4/M10X1 5 630 123 365 74 60 +0.5 80
112.25.500.** 114.25.500.** 6 630 120 360 62 60 +0.5 80
110.25.560** 111.25.560.** 113.25.560.** 662 458 75 626 494 20 18 558.5 561.5 65 10 4/M10X1 5 690 135 425 86 60 +0.5 90
112.25.560.** 114.25.560.** 6 690 112 426 72 60 +0.5 90
110.25.630** 111.25.630.** 113.25.630.** 732 528 75 696 564 24 18 628.5 631.5 65 10 4/M10X1 6 774 126 492 83 60 +0.5 100
112.25.630.** 114.25.630.** 8 776 94 448 62 60 +0.5 100
110.25.710** 111.25.710.** 113.25.710.** 812 608 75 776 644 24 18 708.5 711.5 65 10 4/M10X1 6 852 139 568 80 65 +0.5 170
112.25.710.** 114.25.710.** 8 856 104 632 64 65 +0.5 170
110.28.800** 111.28.800.** 113.28.800.** 922 678 82 878 722 30 22 798.5 801.5 72 10 6/M10X1 6 852 139 568 80 65 +0.5 170
112.28.800.** 114.28.800.** 8 856 104 632 64 65 +0.5 170
110.28.900** 111.28.900.** 113.28.900.** 1022 778 82 978 822 30 22 898.5 901.5 72 10 6/M10X1 8 1064 130 736 93 65 +0.5 190
112.28.900.** 114.28.900.** 10 1070 104 730 74 65 +0.5 190
110.28.1000** 111.28.1000.** 113.28.1000.** 1122 878 82 1078 922 36 22 998.5 1001.5 72 10 6/M10X1 10 1190 116 820 83 65 +0.5 210
112.28.1000.** 114.28.1000.** 12 1188 96 816 69 65 +0.5 210
110.28.1120** 111.28.1120.** 113.28.1120.** 1242 998 82 1198 1042 36 22 1118 1122 72 10 6/M10X1 10 1300 127 940 95 65 +0.5 230
112.28.1120.** 114.28.1120.** 12 1308 106 936 79 65 +0.5 230
110.32.1250** 111.32.1250.** 113.32.1250.** 1540 1110 91 1337 1163 40 26 1248 1252 81 10 6/M10X1 12 1452 118 1044 88 75 +0.5 350
112.32.1250.** 114.32.1250.** 14 1456 101 1036 75 75 +0.5 350
110.32.1400** 111.32.1400.** 113.32.1400.** 1540 1260 91 1478 1313 40 26 1398 1402 81 10 6/M10X1 12 1608 131 1188 100 75 +0.5 400
112.32.1400.** 114.32.1400.** 14 1610 112 1190 86 75 +0.5 400
110.32.1600** 111.32.1600.** 113.32.1600.** 1740 1460 91 1687 1513 45 26 1598 1602 81 10 8/M10X1 14 1820 127 1386 100 75 +0.5 440
112.32.1600.** 114.32.1600.** 16 1824 111 1376 87 75 +0.5 440
110.32.1800** 111.32.1800.** 113.32.1800.** 1940 1660 91 1887 1713 45 33 1798 1802 81 10 8/M10X1 14 2016 141 1568 113 75 +0.5 500
112.32.1800.** 114.32.1800.** 16 2016 123 1568 99 75 +0.5 500
113.45.1830.11 2002 1665 156 1940 1720 54 30 1827 1833 128 28 6/M10X1 12 1610 135 100 +0.5 912
110.40.2000** 111.40.2000.** 113.40.2000.** 2178 1825 112 2110 1891 48 33 1998 2002 100 12 8/M10X1 16 2272 139 1728 109 90 +0.5 900
112.40.2000.** 114.40.2000.** 18 2268 123 1728 97 90 +0.5 900
110.40.2000.12 2178 1825 112 2110 1891 48 33 1991 1995 100 12 8/M10X1 … …. … … … … … 767
110.40.2240** 111.40.2240.** 113.40.2240.** 2418 2065 112 2350 2131 48 33 2237.5 2242.5 100 12 8/M10X1 16 2496 153 1984 125 90 +0.5 1000
112.40.2240.** 114.40.2240.** 18 2502 136 1980 111 90 +0.5 1000
110.40.2500** 111.40.2500.** 113.40.2500.** 2678 2325 112 2610 2391 56 33 2497.5 2502.5 100 12 8/M10X1 18 2772 151 2232 125 90 +0.5 876
112.40.2500.** 114.40.2500.** 20 2780 136 2220 112 90 +0.5 876
110.40.2800** 111.40.2800.** 113.40.2800.** 2978 2625 112 2910 2691 56 33 2797.5 2802.5 100 12 8/M10X1 18 3078 168 2520 141 90 +0.5 1250
112.40.2800.** 114.40.2800.** 20 3080 151 2520 127 90 +0.5 1250
110.50.3150** 111.50.3150.** 113.50.3150.** 3376 2922 134 3286 3014 56 45 3147.5 3152.5 122 12 8/M10X1 20 3480 168 2520 141 110 +0.5 2150
112.50.3150.** 114.50.3150.** 22 3476 151 2520 127 110 +0.5 2150
110.50.3550** 111.50.3150.** 113.50.3150.** 3776 3322 134 3686 3414 56 45 3547.5 3552.5 122 12 8/M10X1 20 3880 191 3220 162 110 +0.5 2470
112.50.3150.** 114.50.3150.** 22 3894 174 3212 147 110 +0.5 2470
110.50.4000** 111.50.4000.** 113.50.4000.** 4226 3772 134 4136 3864 60 45 3997.5 4002.5 122 12 10/M10X1 22 4334 194 3652 167 110 +0.5 2800
112.50.4000.** 114.50.4000.** 25 4350 171 3650 147 110 +0.5 2800
110.50.4500** 111.50.4500.** 113.50.4500.** 4726 4272 134 4636 4364 60 45 4497.5 4502.5 122 12 10/M10X1 22 4940 217 4158 190 110 +0.5 3100
112.50.4500.** 114.50.4500.** 25 4850 191 4150 167 110 +0.5 3100
