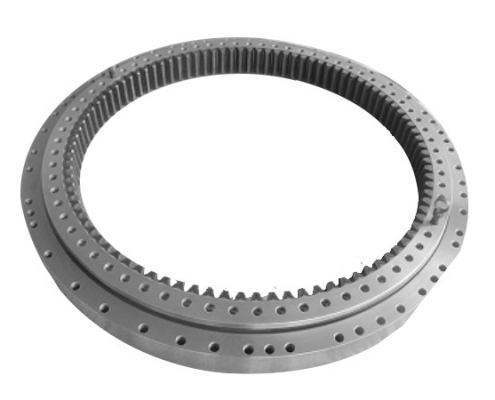

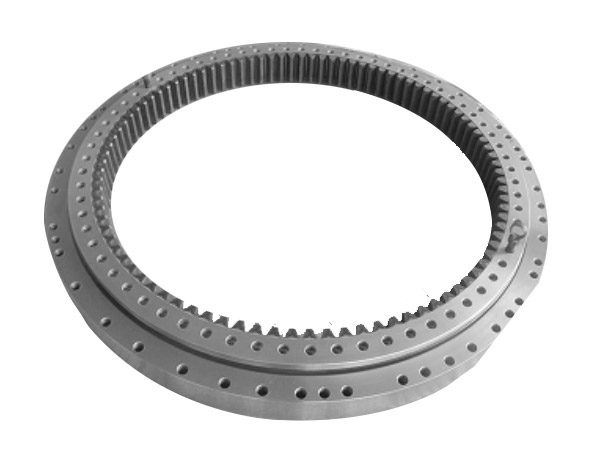

Excavator Slewing Bearing for Kato

HGB is a professional slewing bearing manufacture. We can produce diameter from 200mm-8000mm slewing bearing, including internal gear, external gear, non gear and non-standard slewing bearing, widely […]

Message Online Chat

Product Description

HGB is a professional slewing bearing manufacture. We can produce diameter from 200mm-8000mm slewing bearing, including internal gear, external gear, non gear and non-standard slewing bearing, widely be used for excavator, crane and other rotary machine.

For Excavator, we can provide slewing bearing for Caterpillar, Komatsu, JCB, Volvo, Doosan and other brand.

No Model External diameter Internal diameter Total height Outer ring height Inner ring height Outer ring hole Inner ring hole Tooth Number
1 250-7 811 584 84 67 67 30-φ17.5 e 30-φ17.5 e 75
2 307 811 584 84 67 67 30-φ17.5 e 30-φ17.5 e 75
3 HD450-5 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
4 HD450-7 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
5 HD512 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
6 HD513 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
7 HD516 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
8 HD400-7 1111 873 75 65 62 38-φ18 e 38-φ18.5 e 89
9 HD550 1163 961 94 66 84 36-φ18 e 36-M16*1.5 e 98
10 HD700-1 1310 1083 110 90 90 36-M20 e 36-M20 e 92
11 HD700-2 1310 1083 110 90 90 36-M20 e 36-M20 e 92
12 HD700-5 1300 1084 110 89 94 35-M20 e 36-M20 e 92
13 HD700-7 1320 1080 95 70 85 36-φ22 e 36-M20 e 92
14 HD820-1 1320 1080 95 70 85 36-φ22 e 36-M20 e 92
15 HD820-3 1320 1080 95 70 85 36-φ22 e 36-M20 e 92
16 HD820-7 1320 1080 95 70 85 36-φ22 e 36-M20 e 92
17 HD800-7 1402 1132 97 80 80 36-φ22 e 36-M20 e 96
18 HD900-7 1402 1132 97 80 80 36-φ22 e 36-M20 e 96
