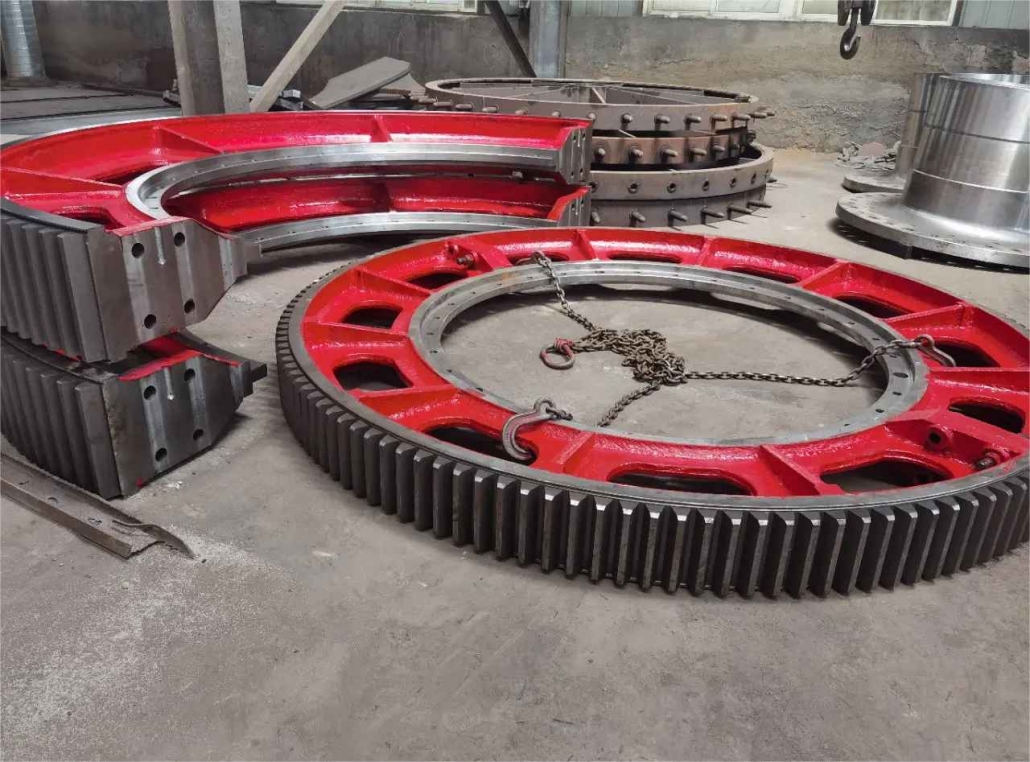

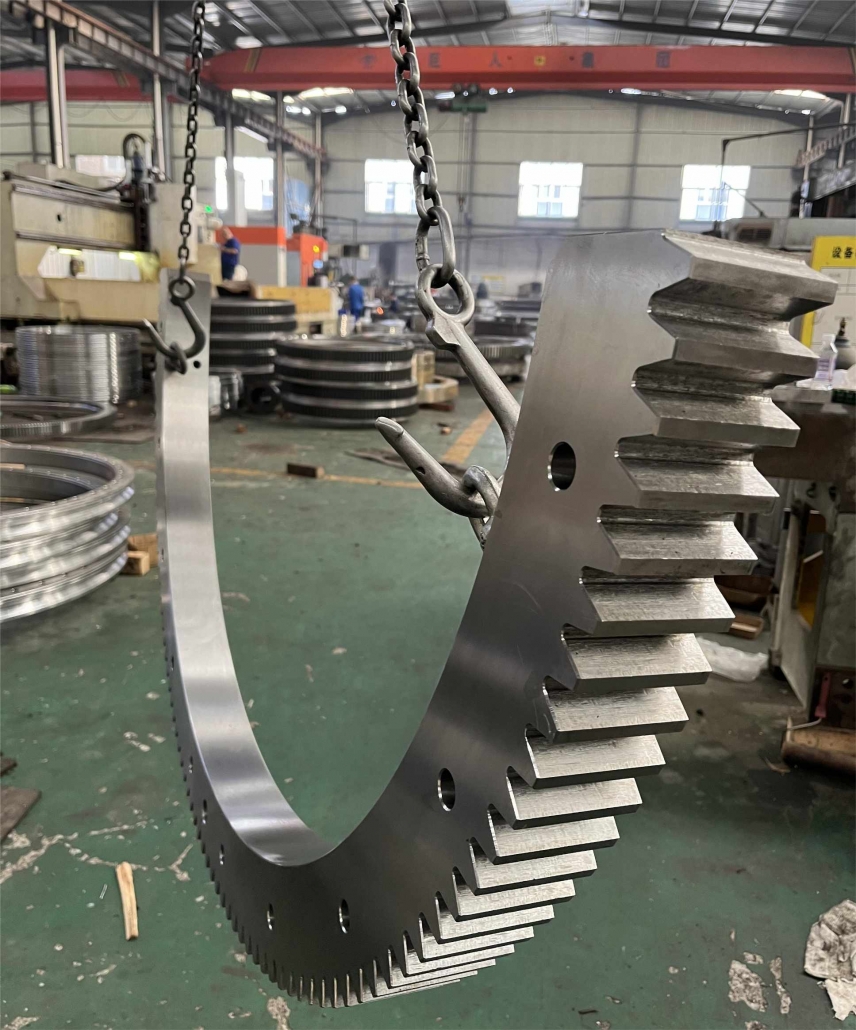

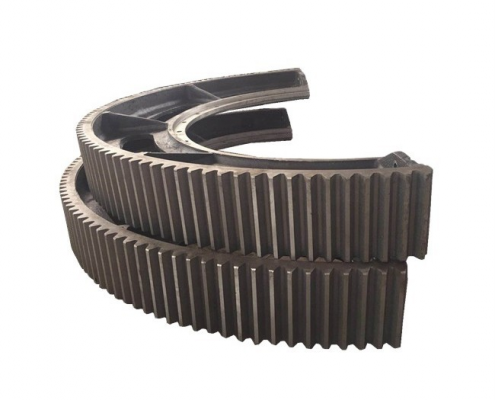

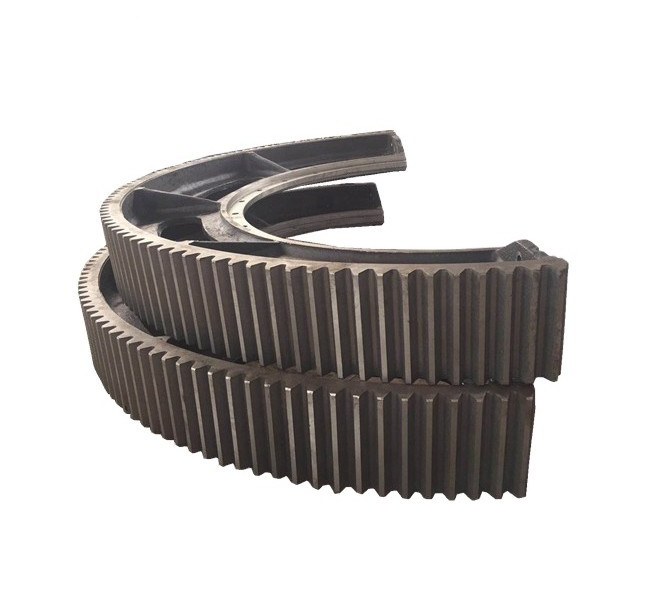

Segmented ring gear
The segmented large gear ring provides a stable and reliable drive solution for large rotating systems with its high precision, easy replacement, long life, and strict processing technology.
Produce description
The segmented large gear ring is a drive device designed for large rotating systems, such as dryers, rotary kilns and horizontal mills. The product adopts a modular design, and is assembled as a whole after single-stage processing, achieving fast and timely delivery, and high comprehensive cost performance.
Product advantages and features
1. High precision: Processed according to ISO 8 level (AGMA 8 level), it ensures the high precision of the gear ring, reduces vibration, and improves the stability of equipment operation.
2. Easy to replace: The segmented design allows the gear ring to only replace the damaged segment when it is damaged, without overall or large-scale disassembly, reducing maintenance costs and time.
3. Long life: The use of high-strength and wear-resistant ADI materials, combined with reasonable lubrication design, makes the gear country have a longer service life.
The processing process of the segmented large gear ring strictly follows the process requirements, including casting, forging, heat treatment, gear processing, quenching and grinding. By optimizing the processing technology and the design and application of special tooling, the processing error is minimized to ensure the accuracy and quality of the gear ring.
| Material | C45,42Crmo,40Cr,20CrMnTi,Stainless steel and so on as per your requests |
| Heat treatment | Carburzing,Induction,Flame,Nitriding…… |
| Process | Forging,Machining,Hobbing,Milling,Shaving,Grinding,Heating treating…… |
| Tooth Profile | spur gear/helical gear/customized |
| Gear Machining | Gear Hobbing,Gear Milling,CNC Gear Milling,Gear Cutting,Spiral gear cutting,Gear Cutting |
| Gear precision | Oridinary,8e,7e…… |
| Warranty | 12momths |
| Payment term | T/T is our first choice |
| Application | Industry Machinery,Manufacturing Plant, Machinery Repair Shops |
| Product advantage | 1.Heavy load capacity,long lifespan.2.High precision,large diameter and module .
3.stable transmission, low impact, vibration and noise |

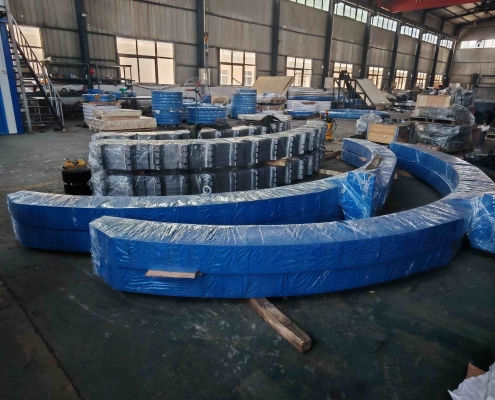

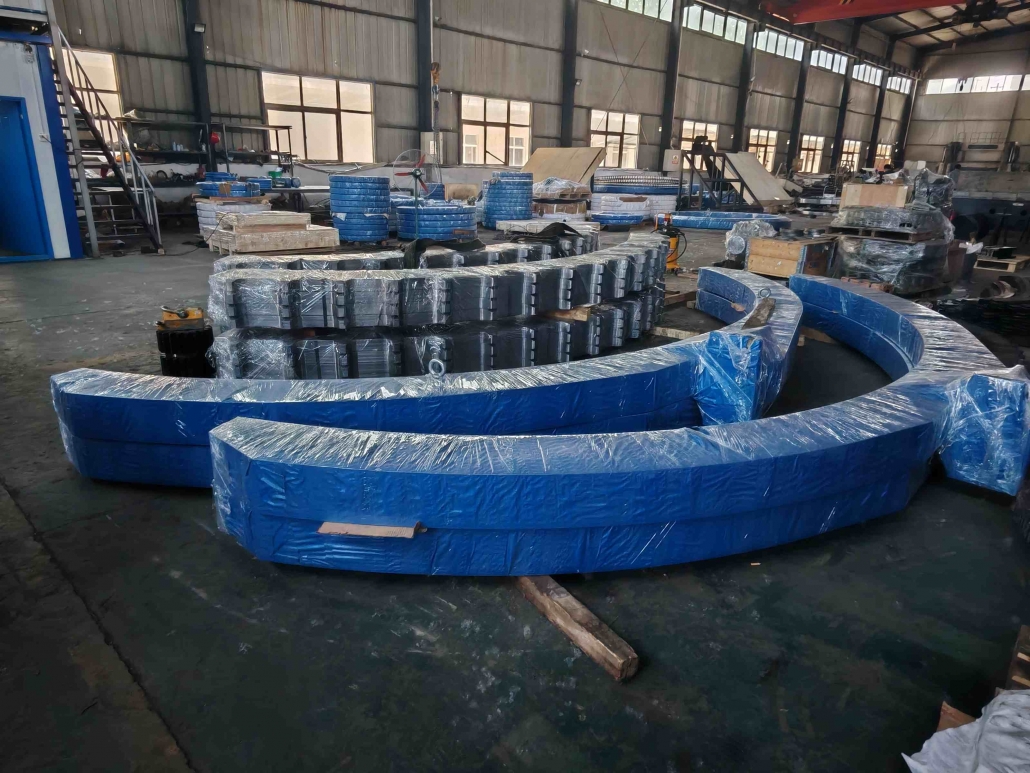

| Packing details | 1. Filling with anti-rust oil2. Corved with Plastic paper
3. Corved with kraft paper 4. Corved with Blue tie 5. Put in wooden box |

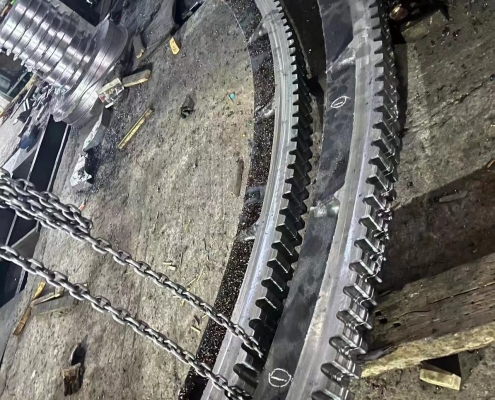

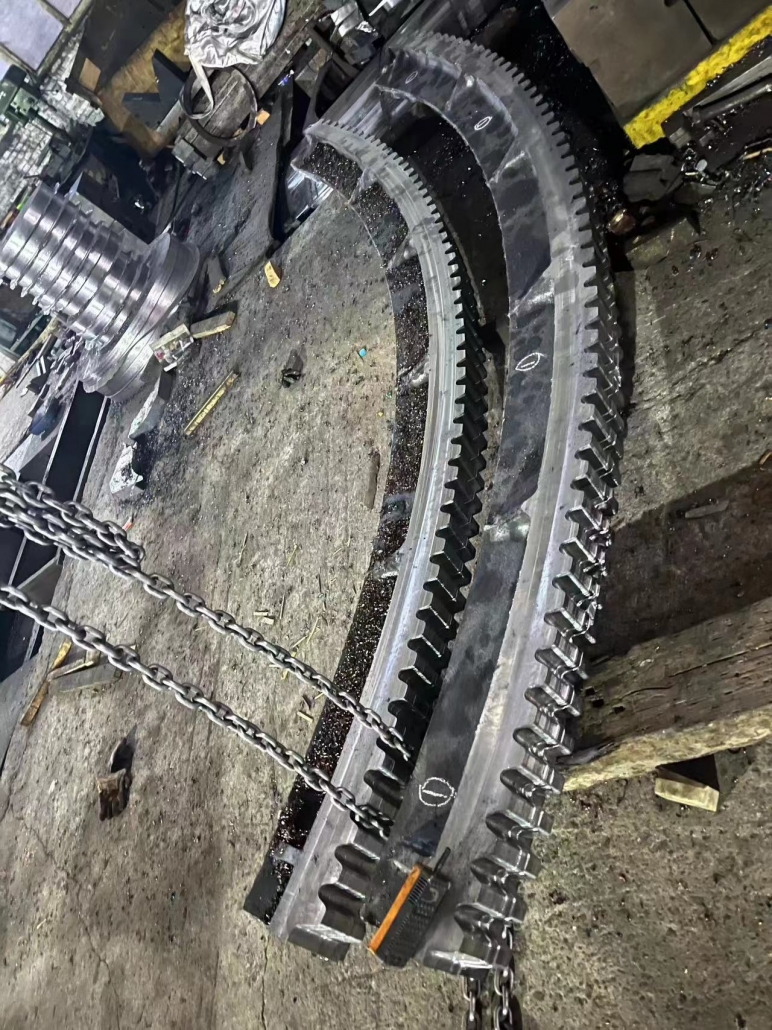

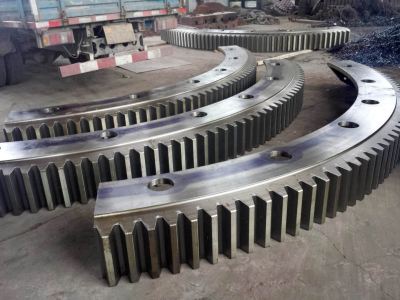

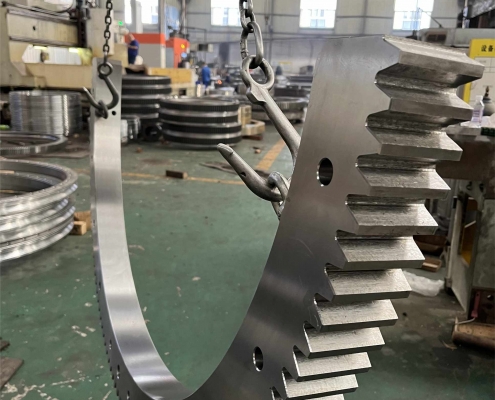

Product display
Advantages
1.Quality Assurance
High grand raw material selection and strict material inspection.The equipment can meet all the processing procedures and fully achieve production according to the drawing.
2.Reasonable Price
The price is the most favorable under the same quality.The quality is the best under the same price.
3.Delivery Time Guarantee
Effcient production arrangment and inspection to guarantee the timely shippment.
4.Team Service
Engneers with more than ten years of experience in the industry. technical support can be provided before, during and after sales. Delivery and goods tracking support can be provided 24*7 online service support can be provided to solve doubts
About us
Our Customers
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 20 years’ experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not instock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
